High and very high pressure rubber hoses
High performance flexible hoses designed for high pressures and abrasion resistance.
Rubber hoses for high and very high pressures
The Interpump High Performance line features a wide range of flexible hoses that exceed international standards. Many of the tubes in the line are designed according to specific customer needs, offering superior quality and characteristics such as higher operating pressure and abrasion resistance and specially certified cladding. The High Performance range is ideal for customers who require hoses that exceed international standards for their applications. To find out more about our High Performance line, download this section of the catalogue in the link below or click on the Request button to contact a sales representative and receive more information.
FLEXIBLE HOSE FROM THE BEST BRANDS
Posa Tubi offers a wide range of rubber hoses for high and very high pressures ready for immediate delivery from the best brands such as Interpump, Manuli, IVG Colbacchini spa and Hoses Technology.
INTERPUMP RANGE

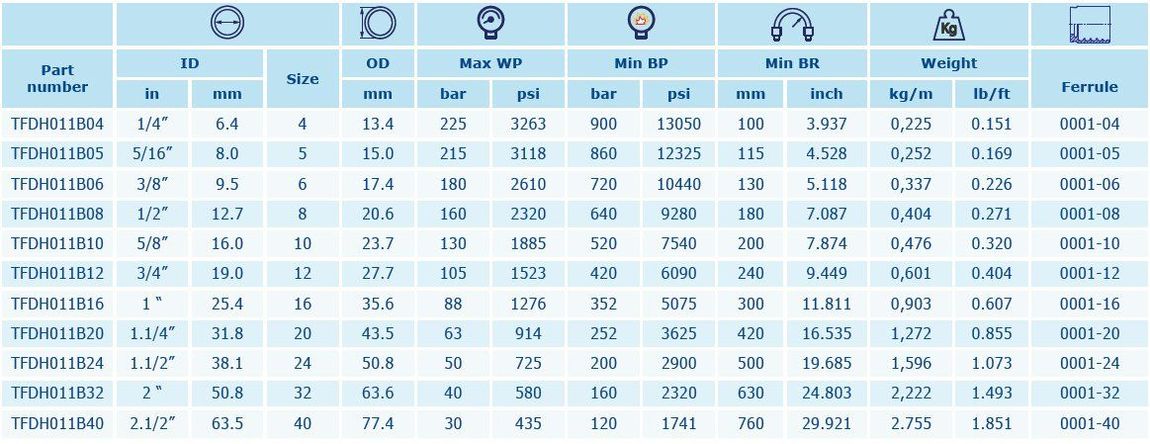

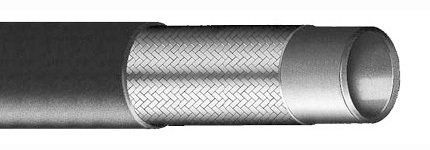

INTERPUMP HYCELSIUS 1SN TFDH011B
Resistance to wide temperature variations. The hoses are not designed and are not approved for air brake applications on rail and/or mobile equipment. Do not use for compressors.
Inner tube: Synthetic rubber, extruded without joints and of uniform thickness.
Reinforcement: 1 steel braid.
Cover: Non-abrasive synthetic rubber resistant to oils, fuels and atmospheric agents.
Recommended fluids: Hydraulic fluids derived from petroleum (mineral oils), water-glycol emulsions, water, lubricants.
Operating temperature: -40 to 135 ° C (140 ° C intermittent).

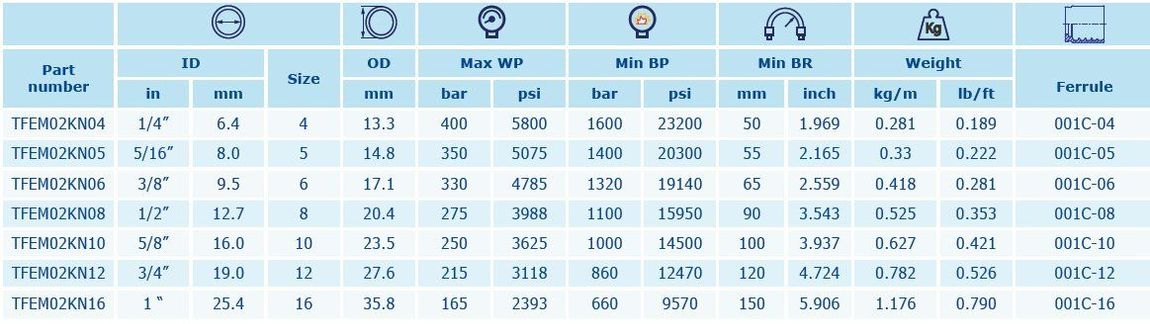

INTERPUMP HYOZONE TFEM02KN
Compact tube with reduced bending radius. Excellent ozone resistance. Extremely high resistance to UV and atmospheric contaminants.
Inner tube: Synthetic rubber, extruded without joints and of uniform thickness.
Reinforcement: 2 braids in high resistance steel.
Cover: Non-abrasive synthetic rubber resistant to oils, fuels and atmospheric agents.
Recommended fluids: mineral and biological oils, water-glycol emulsions, water, lubricants.
Operating temperature: -40 to 120 ° C (135 ° intermittent), -40 to 70 ° C for water-based fluids.

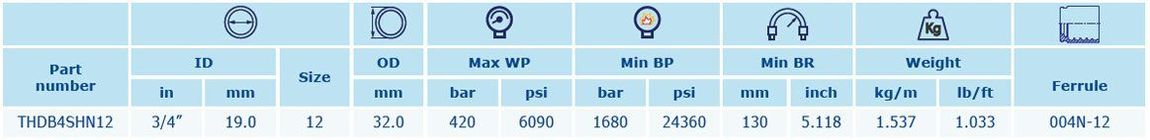

INTERPUMP BIO - FLEX
THDB4SH
Compatible with organic oils. It exceeds the EN regulation. Impulse tested up to 1,000,000 cycles. Reduced radii of curvature. High abrasion resistance. High ozone resistance.
Inner tube: Synthetic rubber, extruded without joints and of uniform thickness.
Reinforcement: 4 steel spirals.
Cover: Non-abrasive synthetic rubber resistant to oils, fuels and atmospheric agents. MSHA coverage.
Recommended fluids: Biological and mineral oils, water-glycol emulsions, water, lubricants.
Operating temperature: from -40 to 100°C oil-based fluids (120 ° C intermittent), from -40 to 70°C for water-based fluids or from 0 to 70 ° C for water.
IVG COLBACHINI RANGE

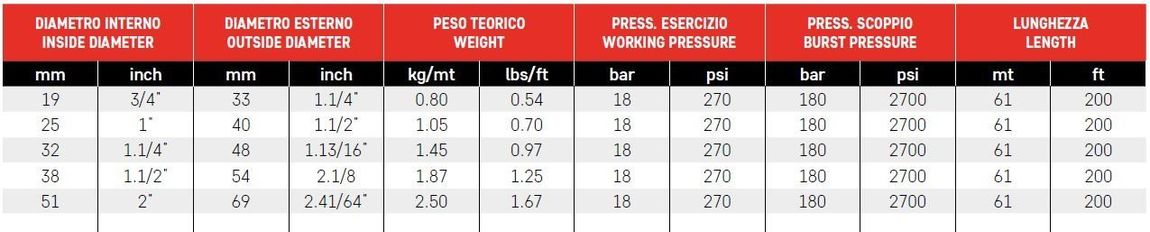

IVG - Chicago glow IN 1947 FIRE

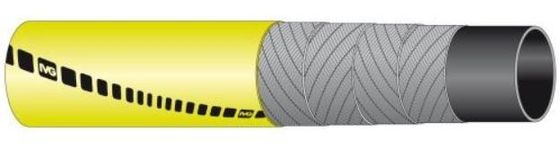

Fire hose in compliance with EN 1947, roll-up on reel with luminescent yellow rubber cover, ideal poor visibility conditions.
Temperature: from -20 ° C to 60 ° C.
Marking: embossed ribbon 'IVG EN 1947: 2014-2-C-1-DI-40 bar-quarter and year of manufacture' black IVG transfer.
Sub-layer: black, smooth, in EPDM rubber resistant to chemicals and fireproof foams.
Reinforcement: high resistance synthetic fabrics.
Cover: light luminescent yellow, smooth (cloth finish), weatherproof synthetic rubber.

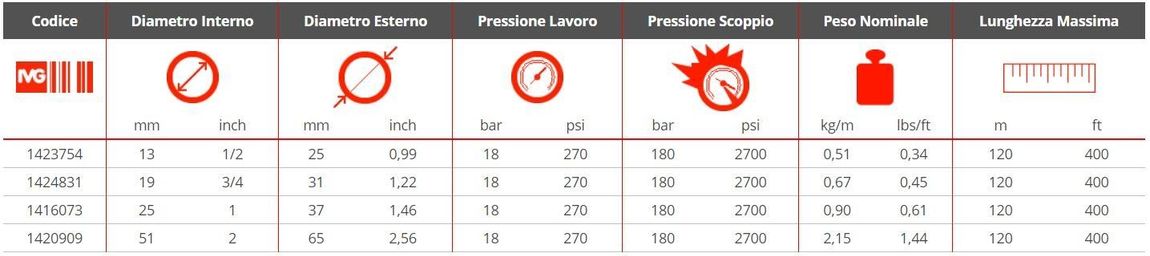

IVG - Victoria Premium
STEAM
Rubber hose for delivery of steam at 210° C at a maximum pressure of 18 bar, with butyl underlayer - particularly resistant to high temperatures.
Temperature: from -40 ° C to 210 ° C.
Marking: 'IVG Steam Victoria ...' embossed ribbon. Sub-layer: black, smooth, in IIR rubber, resistant to saturated steam. Reinforcement: inserts of steel wires.
Cover: red, smooth micro-perforated (cloth impression), EPDM rubber with excellent resistance to high temperatures, atmospheric agents, abrasion and ageing.

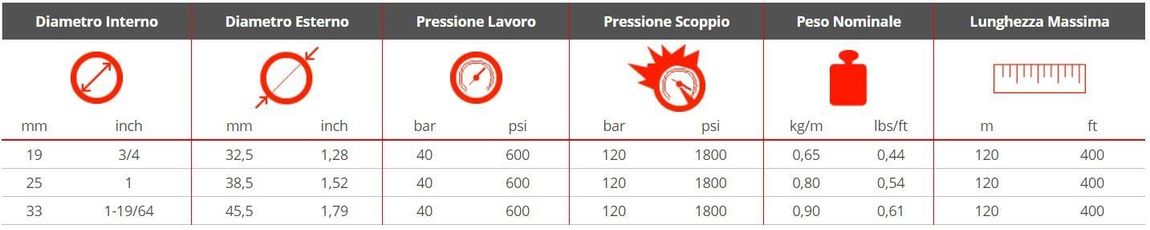

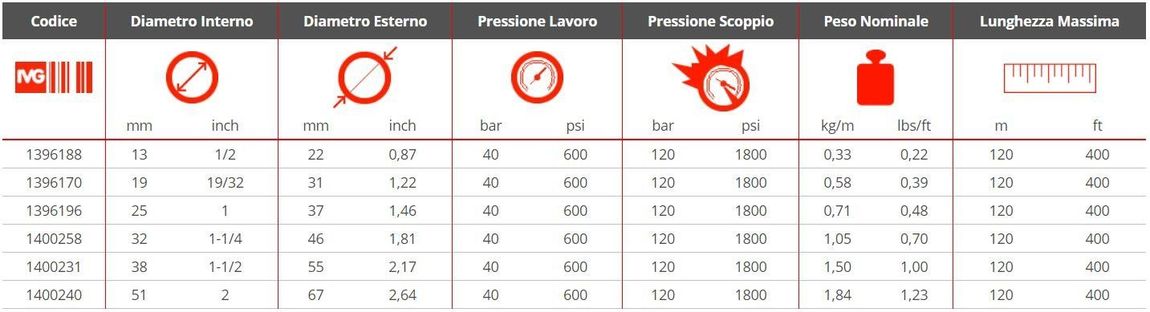

IVG - OIL Compressor
Flexible hose for delivery of oil at high temperatures in hydraulic systems, with self-extinguishing cover in accordance with MSHA and 40 bar operating pressure.
Temperature: from -30 ° C to 130 ° C (intermittent 150 ° C). Marking: yellow relief tape 'IVG OIL COMPRESSOR WP 40 bar - BP 120 bar - TEMPERATURE 130 ° C'.
Underlayer: black, smooth, synthetic rubber.
Reinforcement: high resistance synthetic fabrics.
Cover: blue, smooth (with cloth impression), in synthetic rubber, self-extinguishing, resistant to atmospheric contaminants.
MANULI RANGE
MANULI -

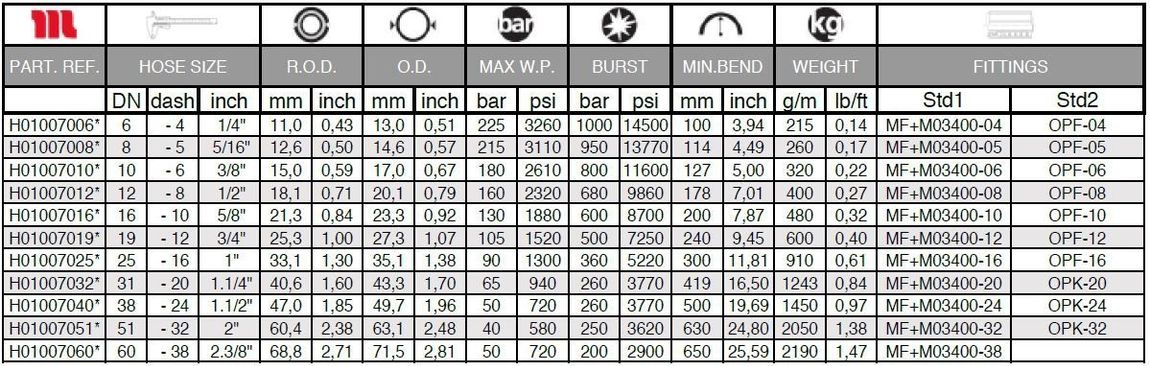

ROCKMASTER/1SN
Flexible hose with high abrasion resistance, high resistance to ozone and atmospheric contaminants and high flame resistance for a wide range of uses.
Temperature: from -40 ° C to 100 ° C (max 125 ° C)
Tube: Synthetic oil resistant rubber.
Reinforcement: high strength steel braid.
Cover: Synthetic rubber with high ozone, weathering and heat resistance
HOSES TECHNOLOGY RANGE
HT - STEAM/CM/210/N OIL
Metallic rubber cord tube for delivery of saturated steam at pressures up to 18 bar.
Sub-layer: smooth, special black EPDM rubber resistant to saturated steam.
Reinforcement: high resistance steel wires.
Cover: special black rubber resistant to steam, abrasion, heat, atmospheric agents and ozone.
Surface: smooth with micro-perforated canvas impression. Marking: HT / STEAM HOSE / EN ISO6134 / TYPE 2 CLASS B / of WP 18 BAR / month and year of manufacture / PE
